Unox CHEFTOP MIND.Maps PLUS Countertop Gas Combi Ovens (5 to 10 Trays, GN 1/1 and GN 2/1)

The Unox CHEFTOP MIND.Maps PLUS Countertop gas combi oven is a combi oven for gastronomy cooking (dehydrating, steaming, low temperature and sous vide cooking, roasting, grilling, pan frying, regeneration) and for fresh or frozen baking, listed here as one product with 5 sizes. Each size is described below with its own specifications; message us with the size you need and we will quote it.

Sizes covered: 5 Trays GN 1/1 (XEVC-0511-GPRM), 7 Trays GN 1/1 (XEVC-0711-GPRM), 10 Trays GN 1/1 (XEVC-1011-GPRM), 6 Trays GN 2/1 (XEVC-0621-GPRM), 10 Trays GN 2/1 (XEVC-1021-GPRM).

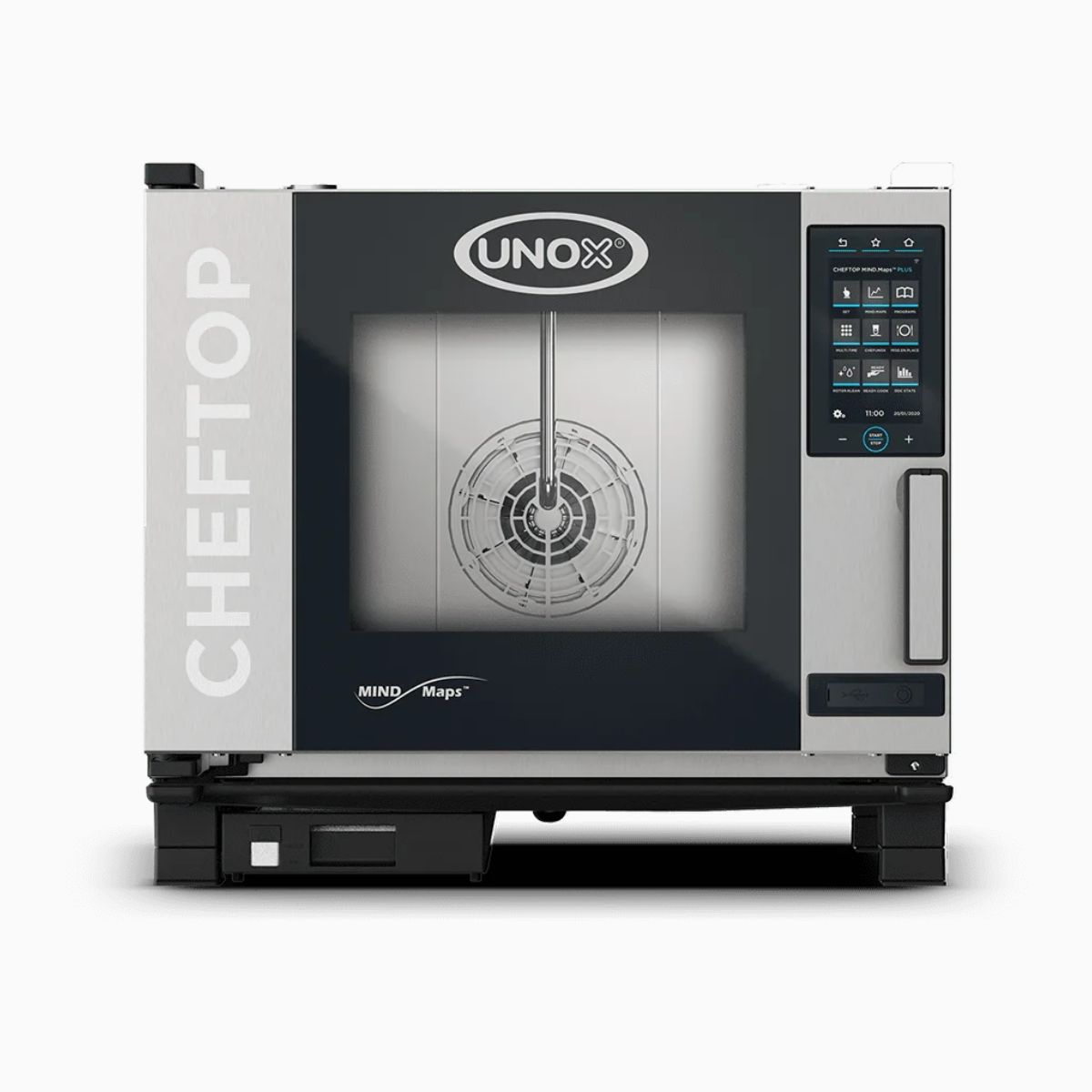

5 Trays GN 1/1 Gas (XEVC-0511-GPRM)

Dimensions (WxDxH): 750 x 783 x 675 mm

Tray pitch: 67 mm

Net weight: 83 kg

Electrical supply: 220 to 240 V, single phase + N + PE, 0.6 kW, max 2 A, 16 A breaker, 3G x 1.5 mm2 cable, Schuko plug

Nominal gas power: G110 12.5 kW; G20, G25, G25.1, G25.3, G30 and G31 15 kW

Gas inlet pressure: 5 to 40 mbar

Connections: 3/4 inch gas inlet, combustion gas exhaust

Unox energy estimate: 27.2 kWh/day (4.9 kg CO2/day)

7 Trays GN 1/1 Gas (XEVC-0711-GPRM)

Dimensions (WxDxH): 750 x 783 x 843 mm

Tray pitch: 67 mm

Net weight: 104 kg

Electrical supply: 220 to 240 V, single phase + N + PE, 1 kW, max 4 A, 16 A breaker, 3G x 1.5 mm2 cable, Schuko plug

Nominal gas power: G110 16 kW; G20, G25, G25.1, G25.3, G30 and G31 19 kW

Gas inlet pressure: 5 to 40 mbar

Connections: 3/4 inch gas inlet, combustion gas exhaust

Unox energy estimate: 36.7 kWh/day (6.6 kg CO2/day)

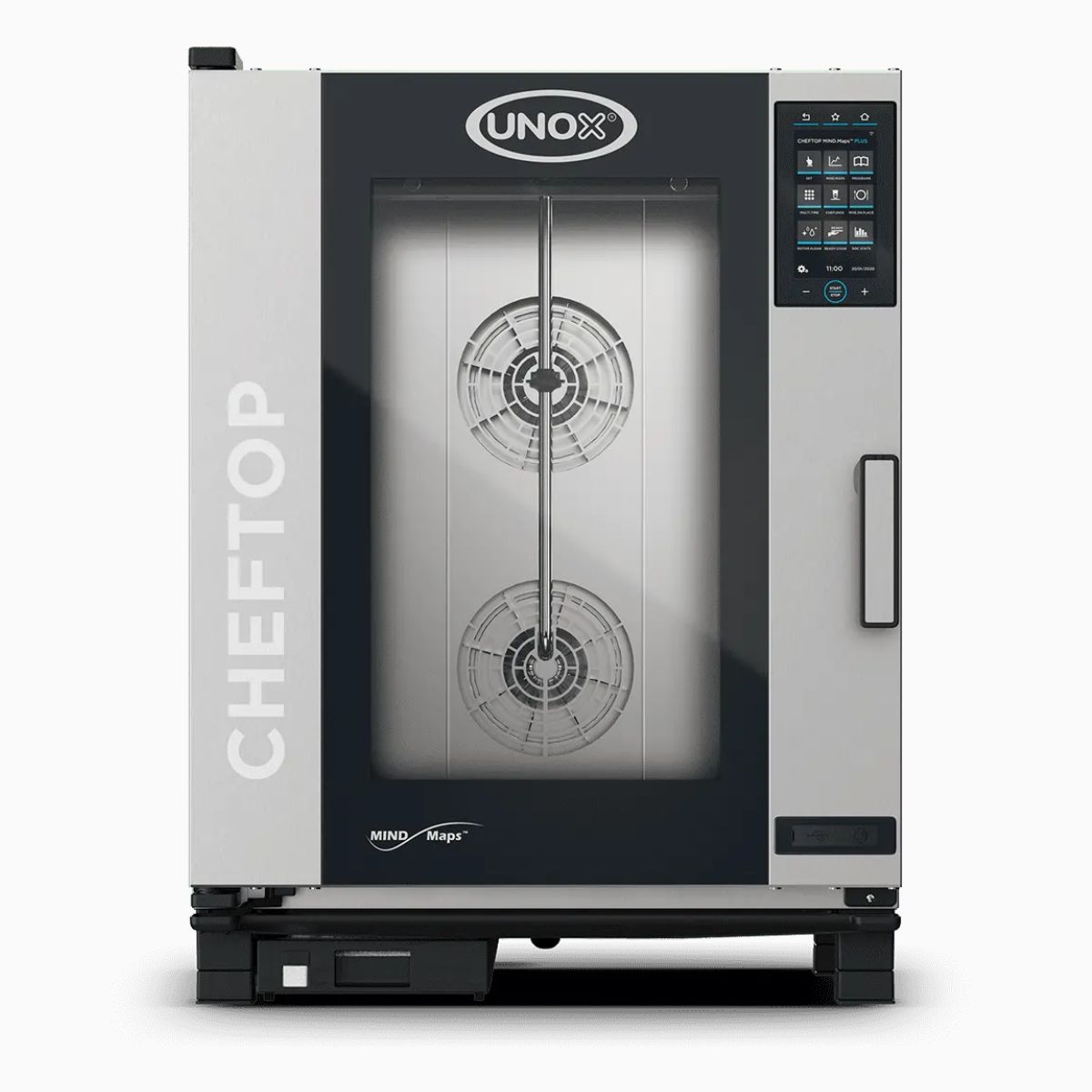

10 Trays GN 1/1 Gas (XEVC-1011-GPRM)

Dimensions (WxDxH): 750 x 783 x 1010 mm

Tray pitch: 67 mm

Net weight: 117 kg

Electrical supply: 220 to 240 V, single phase + N + PE, 1 kW, max 4 A, 16 A breaker, 3G x 1.5 mm2 cable, Schuko plug

Nominal gas power: G110 17 kW; G20, G25, G25.1, G25.3, G30 and G31 22 kW

Gas inlet pressure: 5 to 40 mbar

Connections: 3/4 inch gas inlet, combustion gas exhaust

Unox energy estimate: 45.7 kWh/day (8.3 kg CO2/day)

6 Trays GN 2/1 Gas (XEVC-0621-GPRM)

Dimensions (WxDxH): 860 x 1145 x 842 mm

Tray pitch: 77 mm

Net weight: 155 kg

Electrical supply: 220 to 240 V, single phase + N + PE, 1 kW, max 4 A, 10 A breaker, 3G x 1.5 mm2 cable, Schuko plug

Nominal gas power: G110 16 kW; G20, G30 and G31 24 kW; G25 23 kW; G25.1 and G25.3 22 kW

Gas inlet pressure: 5 to 40 mbar

Connections: 3/4 inch gas inlet, combustion gas exhaust

Unox energy estimate: 108 kWh/day (19.5 kg CO2/day)

10 Trays GN 2/1 Gas (XEVC-1021-GPRM)

Dimensions (WxDxH): 860 x 1145 x 1162 mm

Tray pitch: 77 mm

Net weight: 183 kg

Electrical supply: 220 to 240 V, single phase + N + PE, 1.4 kW, max 4.5 A, 10 A breaker, 3G x 1.5 mm2 cable, Schuko plug

Nominal gas power: G110 23 kW; G20, G30 and G31 35 kW; G25, G25.1 and G25.3 31.5 kW

Gas inlet pressure: 5 to 40 mbar

Connections: 3/4 inch gas inlet, combustion gas exhaust

Unox energy estimate: 167.5 kWh/day (30.3 kg CO2/day)

All models share the CHEFTOP MIND.Maps PLUS Countertop feature set: 9.5 inch touch panel, left hinged door, 30 to 260 C, up to 9 cooking steps, 1000+ programs, CHEFUNOX automatic cooking library, MULTI.TIME for up to 10 cooking processes at once, MISE.EN.PLACE to finish different dishes together, MIND.Maps to draw cooking processes on the display, and READY.COOK quick start settings. CLIMA.Control sets humidity or dry air in 10% steps, and Delta T cooking works with the core probe.

Intelligent and intensive cooking: ADAPTIVE.Cooking regulates parameters for repeatable results, CLIMALUX controls chamber humidity, SMART.Preheating sets preheat automatically, AUTO.Soft softens the heat rise, SENSE.Klean suggests the right wash, DRY.Maxi removes humidity, STEAM.Maxi makes saturated steam, AIR.Maxi manages fan reversing and pulse, and PRESSURE.Steam raises steam saturation and temperature. The 5, 6, 7 and 10 tray models list a MULTI.Point core probe with 4 measuring points and an optional SOUS-VIDE probe.

Build and cleaning: high-resistance AISI 304 stainless steel cooking chamber with rounded edges, ROTOR.Klean automatic washing with special washing behind the fan guard, an integrated DET&Rinse detergent container, LED lighting in the door, anti-tip tray supports, a drip collection system in the door that works with the door open, and a 4-speed fan system with high-performance heating elements. Triple glass on all models except the 3 tray model, which has double glass.

Connectivity: integrated Wi-Fi, Wi-Fi or USB download and upload of HACCP data and programs, the Data Driven Cooking app and the Top.Training app.

Optional accessories listed: PURE-RO reverse osmosis system, HYPER.Smoker smoker box, SMART.Drain, SLOWTOP, neutral cabinet, stand, QUICK.Load and trolley system, Cooking Essentials trays, DET&Rinse ECO and ULTRAPLUS cleaning agents, PURE and PURE.XL resin filters, Ethernet connection kit.

Water supply: 3/4 inch NPT inlet at 1.5 to 6 bar (2 bar recommended). Inlet limits from the datasheet: free chlorine up to 0.5 ppm, chloramine up to 0.1 ppm, pH 7 to 8.5, conductivity up to 1000 uS/cm, total hardness up to 30 dH, chlorides up to 120 ppm. Steam circuit: hardness up to 8 dH and chlorides up to 25 ppm. Water outside these limits voids the warranty, and Unox recommends ion exchange resin treatment (polyphosphate systems are not allowed).

Suitable for: restaurants, hotels, bakeries and catering kitchens that need a gas combi oven with automatic washing.
