Hoshizaki Ice Cube Machines (26 to 220 kg/day)
Ice cube machines making cube, big cube and ball ice from 26 to 220 kg/day across eight models.
Contact sales to get the best price
Sales Helpline: +91 97113 01517
These Hoshizaki ice cube machines, covering cube, big cube, and ball ice, are listed here as one product. Each model is described below with its own specifications; message us with the model you need, and we will quote it.
Models covered: IM-30CA Cube Ice Machine, IM-45CA Cube Ice Machine, IM-45CNE Cube Ice Machine, IM-65NE LM Big Cube Ice Machine, IM-65NE Q Ball Ice Machine, IM-130NE Cube Ice Machine, IM-240NE Cube Ice Machine, IM-220AA Cube Ice Machine.

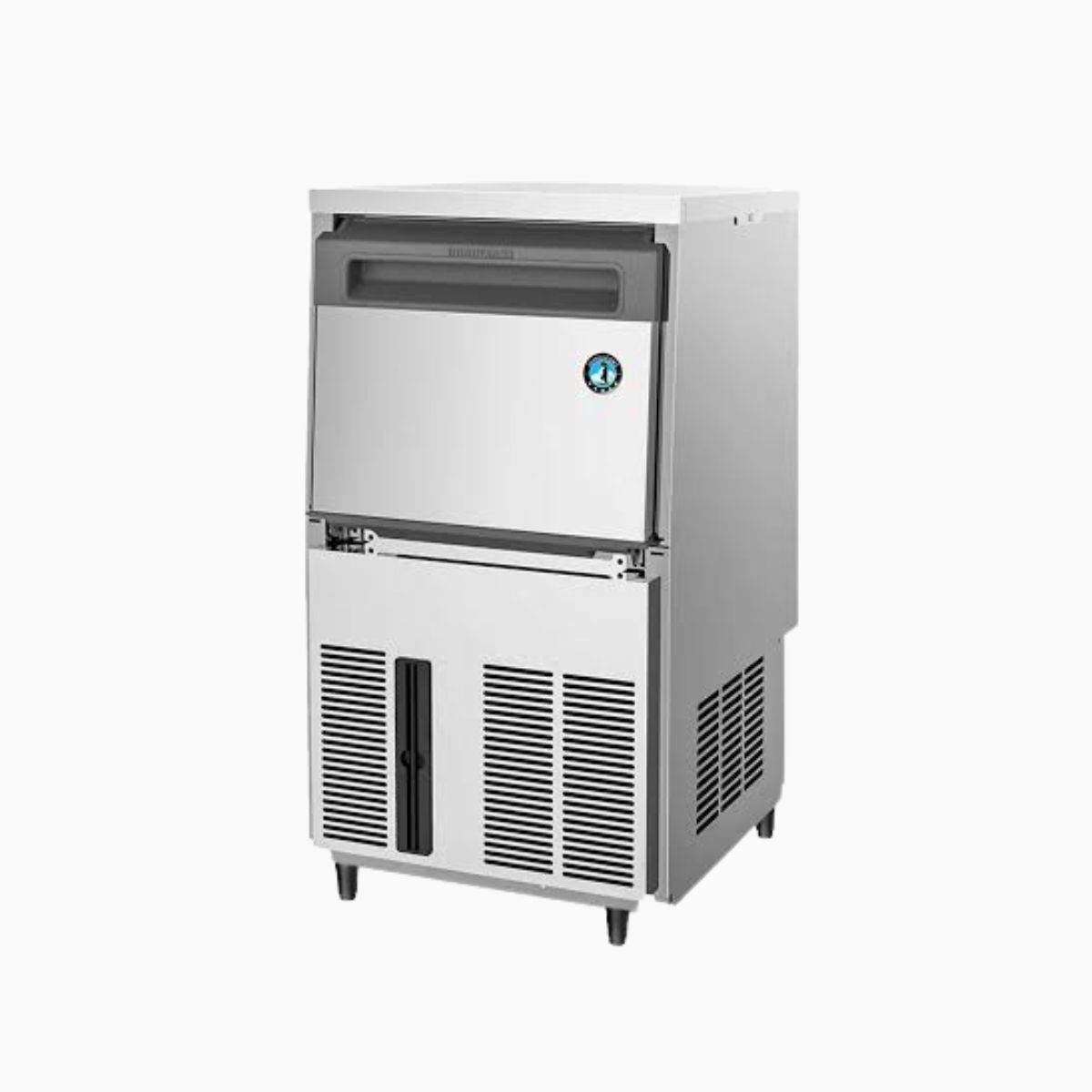

IM-30CA Cube Ice Machine
The Hoshizaki IM-30CA is the smallest cube ice machine in the IM-N series, built for counters and small bars where floor space is the limiting factor rather than ice volume.
Capacity (10C ambient, 10C water): 27 kg/day
Production at 21C ambient, 15C water: 26 kg/day
Production at 32C ambient, 21C water: 22 kg/day
Bin capacity: 12 kg
Dimensions (WxDxH): 398 x 510 x 695 mm
Shipping weight: 49 kg
Cube size: Large, 32mm

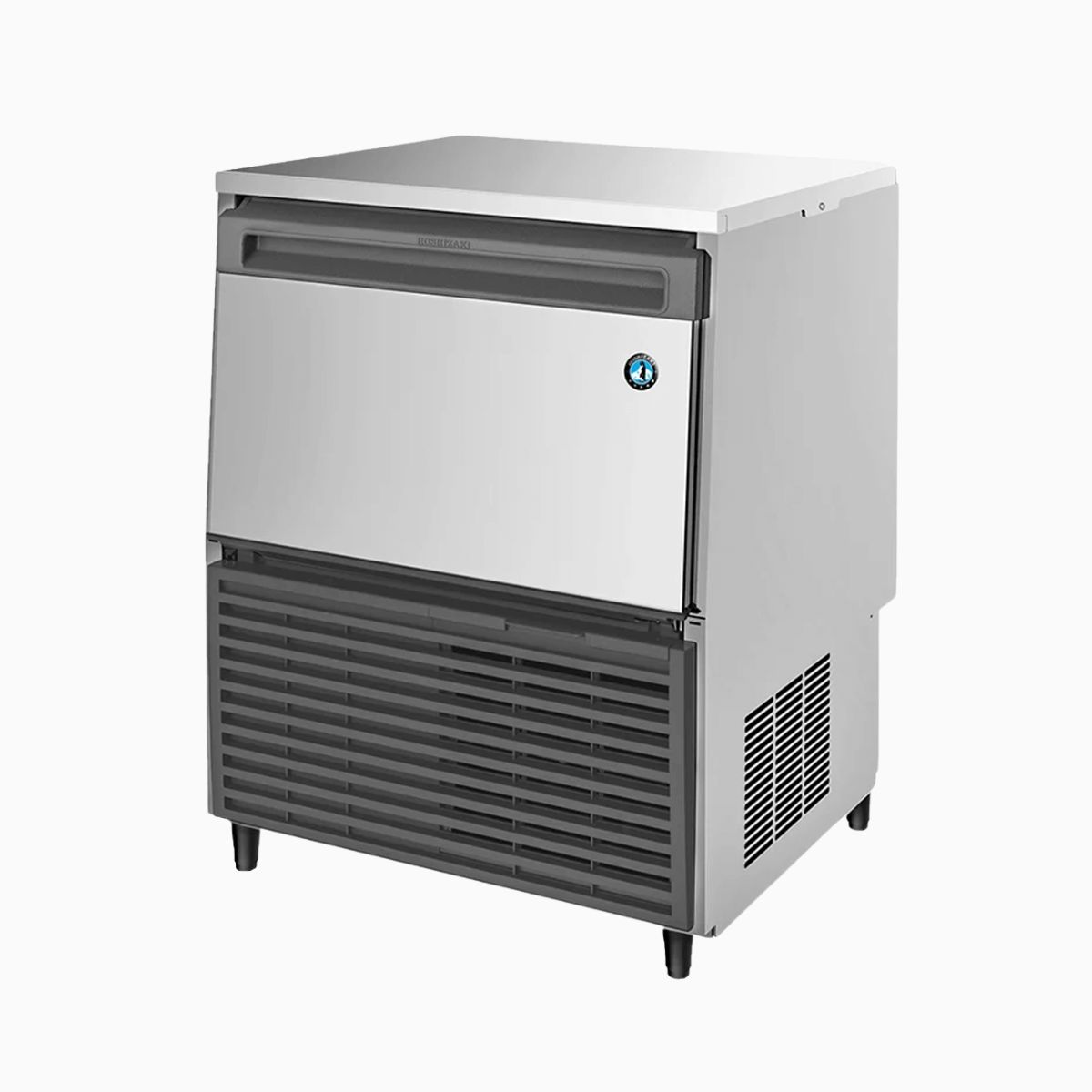

IM-45CA Cube Ice Machine
The Hoshizaki IM-45CA steps up from the IM-30CA with meaningfully higher daily output in a wider cabinet, for bars and cafes that have outgrown a counter-footprint machine.
Capacity (10C ambient, 10C water): 45 kg/day
Production at 21C ambient, 15C water: 44 kg/day
Production at 32C ambient, 21C water: 35 kg/day
Bin capacity: 15 kg
Dimensions (WxDxH): 660 x 570 x 695 mm
Shipping weight: 65 kg
Cube size: Large, 32mm
IM-45CNE Cube Ice Machine
The Hoshizaki IM-45CNE sits alongside the IM-45CA, with the same 15 kg bin size but a narrower, deeper cabinet and slightly lower daily output, for kitchens that prioritize cabinet shape over raw capacity.
Capacity (10C ambient, 10C water): 36 kg/day
Production at 21C ambient, 15C water: 32 kg/day
Production at 32C ambient, 21C water: 29 kg/day
Bin capacity: 15 kg
Dimensions (WxDxH): 633 x 511 x 690 mm
Shipping weight: 56 kg
Cube size: Large, 32mm
[TO VERIFY: the IM-45CA and IM-45CNE share the “45” model naming despite different rated output, 45 kg/day versus 36 kg/day; confirm which is current with Hoshizaki/Western before quoting if a customer asks for an IM-45 by name alone.]
IM-65NE LM Big Cube Ice Machine
The Hoshizaki IM-65NE LM produces big cubes (48 x 58mm) rather than standard large cubes, for drinks service and display applications where slower melt and a more premium look matter more than raw daily volume.
Capacity (10C ambient, 10C water): 40 kg/day
Production at 21C ambient, 15C water: 33 kg/day
Production at 32C ambient, 21C water: 25 kg/day
Bin capacity: 26 kg
Dimensions (WxDxH): 633 x 506 x 860 mm
Shipping weight: 61 kg
Cube size: Big Cube, 48 x 58mm
IM-65NE Q Ball Ice Machine
The Hoshizaki IM-65NE Q produces spherical ball ice (45g, 45mm diameter) on the same cabinet platform as the IM-65NE LM, for bars wanting the round-ice look associated with premium spirits service.
Capacity (10C ambient, 10C water): 26 kg/day
Production at 21C ambient, 15C water: 24 kg/day
Production at 32C ambient, 21C water: 20 kg/day
Bin capacity: 17 kg
Dimensions (WxDxH): 633 x 506 x 860 mm
Shipping weight: 66 kg
Cube size: Ball, 45g, Ø45 mm

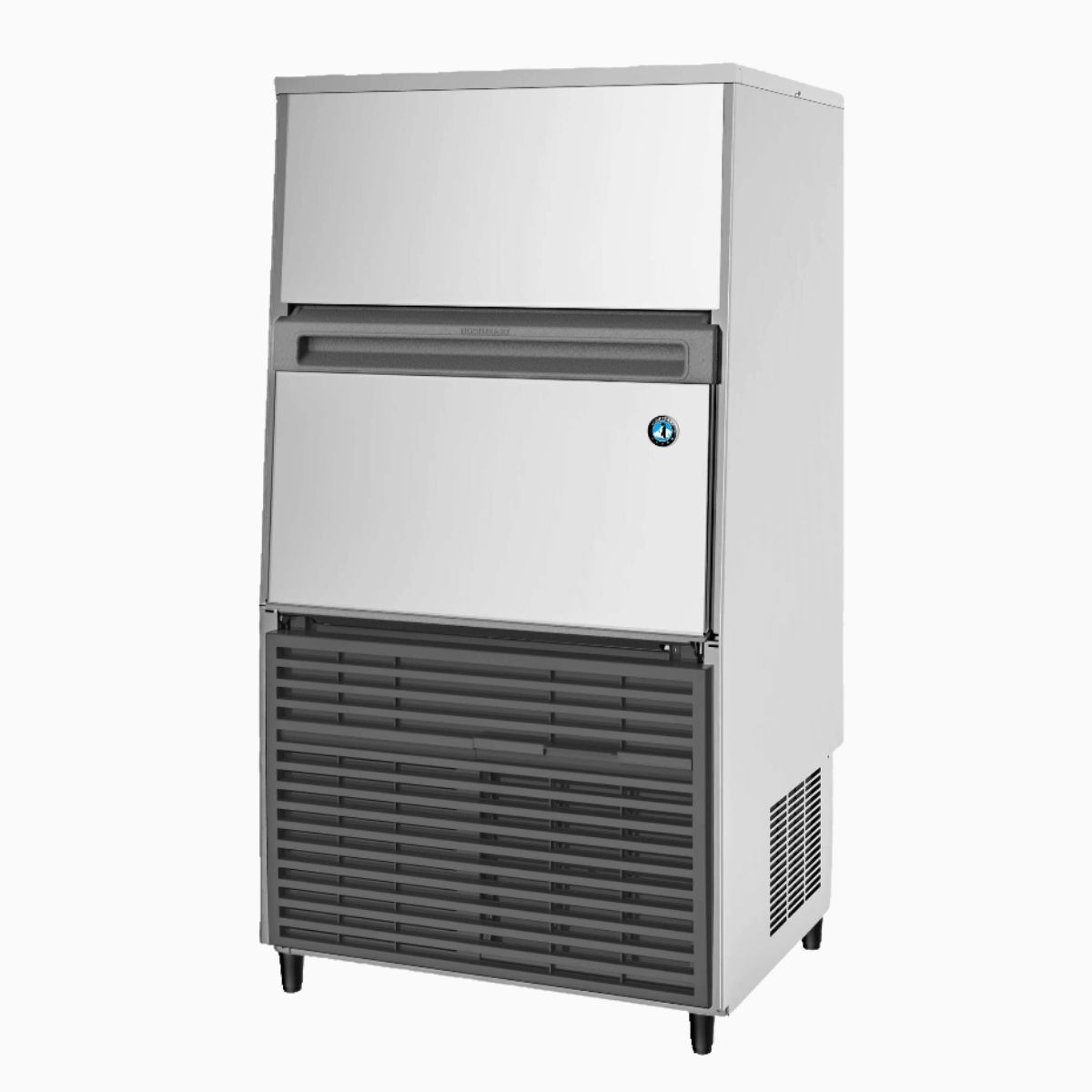

IM-130NE Cube Ice Machine
The Hoshizaki IM-130NE moves up to a free-standing cabinet for kitchens and bars needing a full-service daily ice volume rather than a countertop or under-counter unit.
Capacity (10C ambient, 10C water): 100 kg/day
Production at 21C ambient, 15C water: 104 kg/day
Production at 32C ambient, 21C water: 88 kg/day
Bin capacity: 50 kg
Dimensions (WxDxH): 704 x 506 x 1200 mm
Shipping weight: 85 kg
Cube size: Large, 32mm
[TO VERIFY: the manufacturer catalogue lists production at 21C ambient / 15C water as 104 kg/day, higher than the 100 kg/day rated capacity at the cooler 10C ambient / 10C water condition. Output normally falls as ambient temperature rises, so this reads as a likely catalogue error; confirm the correct figure with Hoshizaki/Western before quoting a customer on peak daily output.]

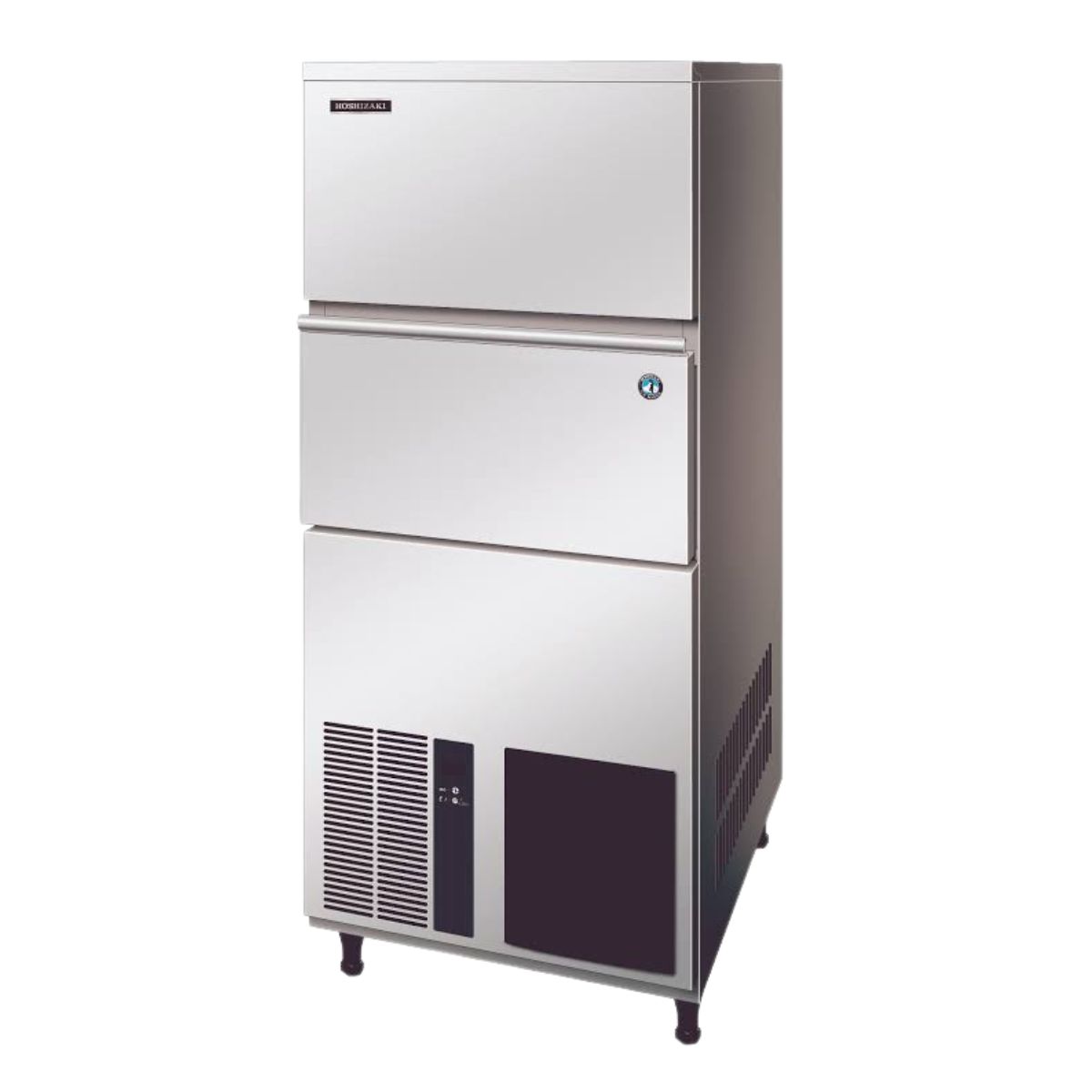

IM-240NE Cube Ice Machine
The Hoshizaki IM-240NE is the largest self-contained cube ice machine in the IM-N series, built for high-footfall kitchens, bars, and banquet operations that need a substantial standing ice reserve.
Capacity (10C ambient, 10C water): 220 kg/day
Production at 21C ambient, 15C water: 205 kg/day
Production at 32C ambient, 21C water: 160 kg/day
Bin capacity: 110 kg
Dimensions (WxDxH): 704 x 665 x 1510 mm
Shipping weight: 128 kg
Cube size: Large, 32mm

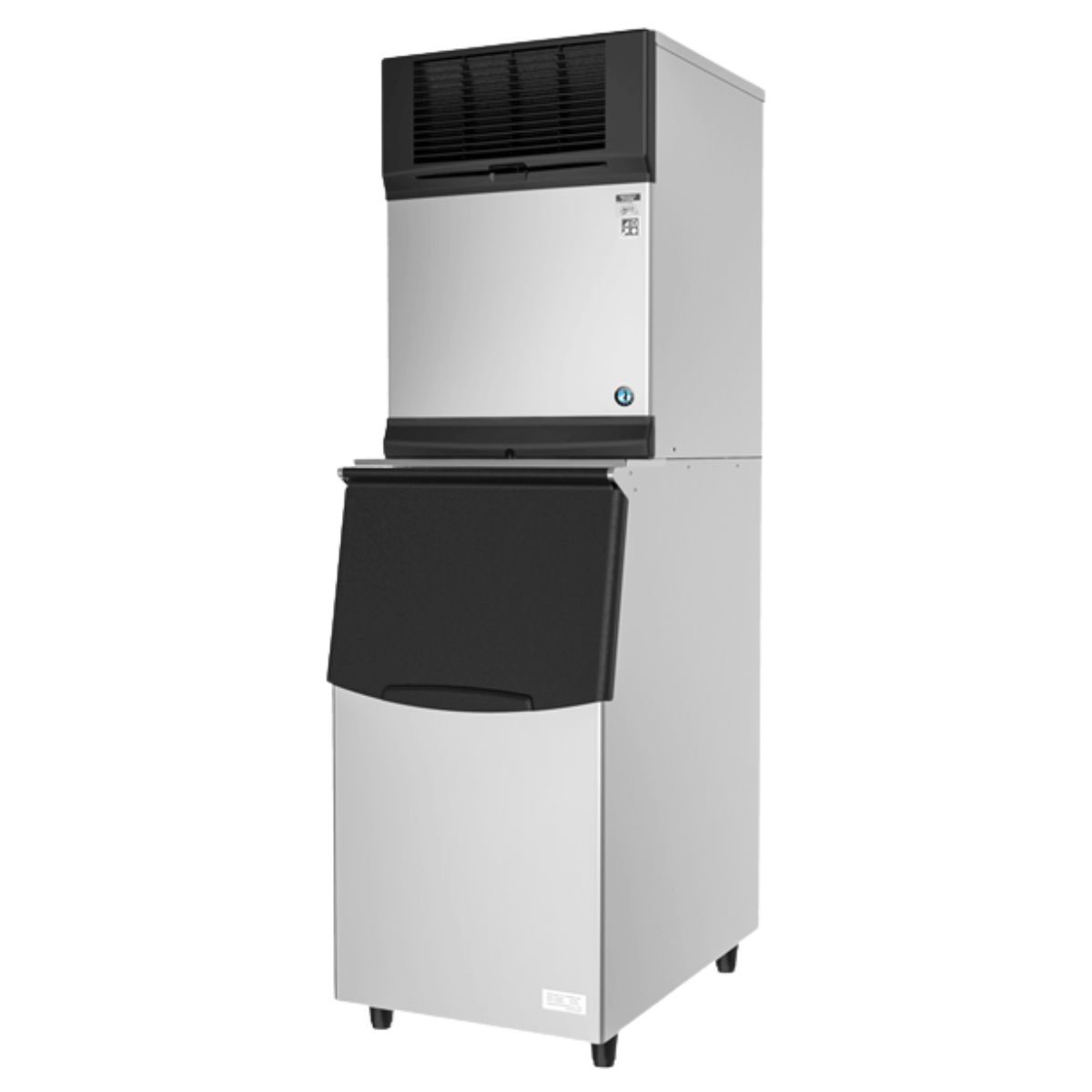

IM-220AA Cube Ice Machine
The Hoshizaki IM-220AA offers high daily output close to the IM-240NE but in a noticeably shorter cabinet, for kitchens with ceiling or overhead clearance constraints.
Capacity (10C ambient, 10C water): 190 kg/day
Production at 21C ambient, 15C water: 180 kg/day
Production at 32C ambient, 21C water: 160 kg/day
Bin capacity: Various (bin sold separately; see compatible storage bins)
Dimensions (WxDxH): 560 x 639 x 775 mm
Shipping weight: 76 kg
Cube size: Large, 32mm
[TO VERIFY: bin capacity is listed as “Various” in the source catalogue rather than a fixed figure, suggesting this model pairs with a separate storage bin similar to the FM and KM series; confirm compatible bin options before quoting.]
Production capacity falls as ambient and water temperature rise; the figure below the capacity rating is the cooler-condition peak, and the two rows beneath it (21C ambient / 15C water, and 32C ambient / 21C water) give the realistic range to plan daily output against.
Suitable for: small bars, cafes and office pantries needing a compact, self-contained cube ice supply under a counter or back-bar shelf.
About Restolane: Delhi NCR-based commercial kitchen equipment distributor with close to 20 years in the HORECA trade, backed pan-India by the manufacturer’s own authorised service network. Message us with your requirements for a quote.
How much ice does the IM-30CA make per day?
Up to 27 kg/day in cool conditions, falling to 22 kg/day at 32C ambient and 21C water.
What cube size does it produce?
Large 32mm cubes.
How big is the storage bin?
12 kg, built into the same compact unit.
How much ice does the IM-45CA make per day?
Up to 45 kg/day in cool conditions, falling to 35 kg/day at 32C ambient and 21C water.
How does it compare to the IM-30CA?
Noticeably higher daily output and a larger 15 kg bin, in a wider cabinet.
How much ice does the IM-45CNE make per day?
Up to 36 kg/day in cool conditions, falling to 29 kg/day at 32C ambient and 21C water.
How is this different from the IM-45CA?
A narrower, deeper cabinet (633 x 511mm versus 660 x 570mm) with somewhat lower rated output, same 15 kg bin.
What makes this different from a standard cube machine?
It produces Big Cube ice (48 x 58mm) rather than the standard 32mm large cube, for slower melt in drinks service.
How much ice does it make per day?
Up to 40 kg/day in cool conditions, falling to 25 kg/day at 32C ambient and 21C water.
What ice shape does the IM-65NE Q make?
Spherical ball ice, 45g each, 45mm diameter.
How does it compare to the IM-65NE LM?
Same cabinet footprint, different ice shape (ball versus big cube) and somewhat lower daily output, 26 kg/day versus 40 kg/day.
How much ice does the IM-130NE make per day?
Rated at 100 kg/day in cool conditions, with a 50 kg storage bin. See the note above on a figure in the source catalogue that needs verification against the current spec sheet.
How much ice does the IM-240NE make per day?
Up to 220 kg/day in cool conditions, falling to 160 kg/day at 32C ambient and 21C water, with a 110 kg storage bin.
Is this a modular head-and-bin machine?
No, it is a self-contained unit with the ice maker and bin built into one cabinet, unlike the FM and KM series which use a separate head and bin.
