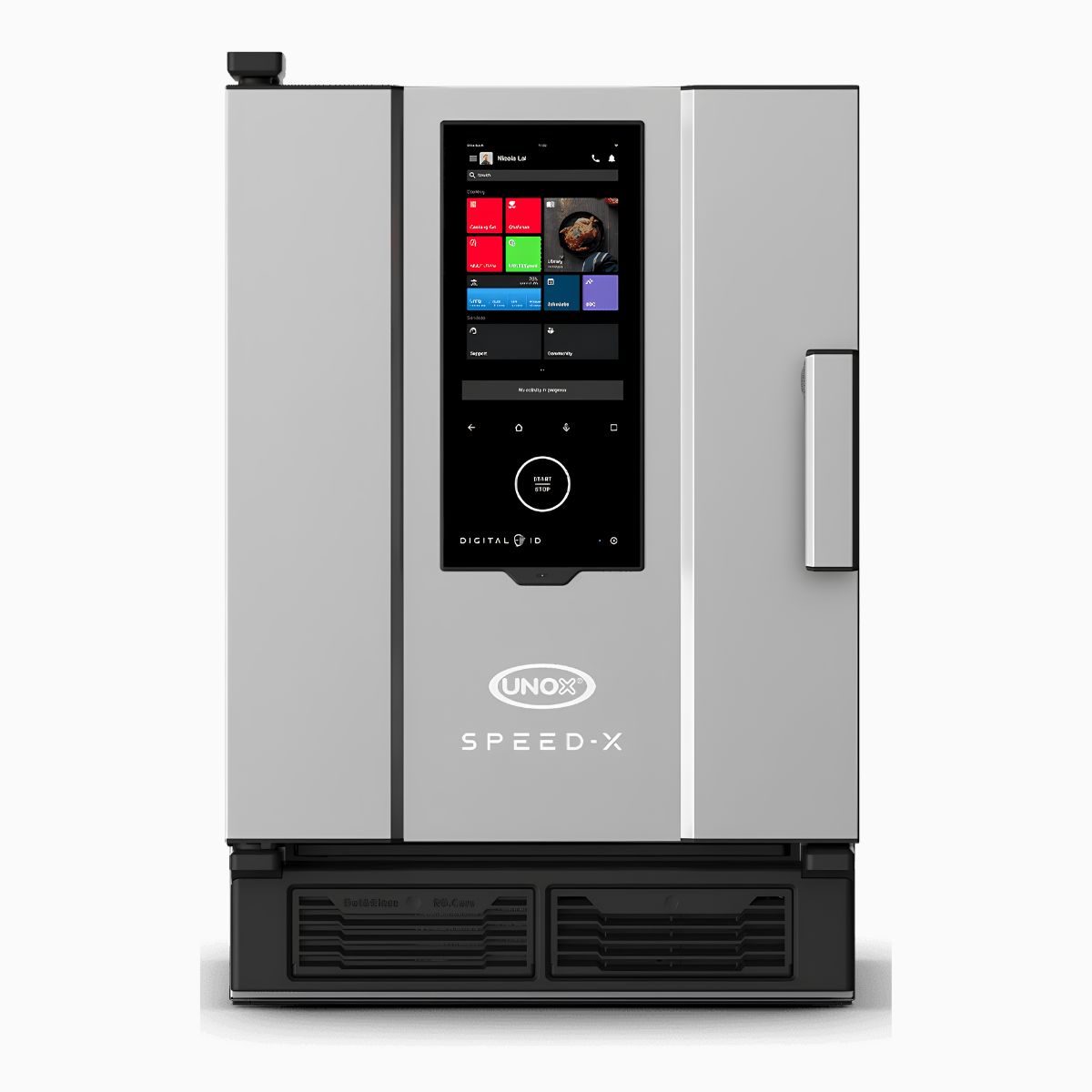

Unox Combi Speed Oven with Automatic Washing, 5 or 10 GN 2/3 Trays

The Unox SPEED-X (model XEPA-0523-EXRN) is a combi oven and a speed oven in one machine, with automatic washing. In combi mode it holds 10 GN 2/3 trays at 35 mm pitch or 5 GN 2/3 trays at 70 mm pitch, and it has a dedicated position for the SPEED.Plate to cook up to 4 items at once in speed mode.

Specifications:

Model: SPEED-X, XEPA-0523-EXRN

Capacity, combi mode: 10 GN 2/3 trays (35 mm pitch) or 5 GN 2/3 trays (70 mm pitch)

Capacity, speed mode: 1 GN 2/3 tray position for SPEED.Plate, up to 4 items at once

Door: Slam shut, hinge on the left side

Control panel: 16 inch capacitive touch

Temperature range: 30 to 260 C

Cooking steps: Up to 9

Humidity control: 10% to 100%, measured continuously (CLIMA.Control)

Microwave: Settable in 10% steps

Fan speeds: 5 continuous and 5 pulsed

Storable programs: 1000+

Cooking chamber: AISI 316L stainless steel

Washing: ROTOR.Klean automatic washing with integrated DET&Rinse detergent tank

Water filtration: RO.Care, up to 1300 litres of filtered water per cartridge

Dimensions (WxDxH): 535 x 740 x 811 mm

Net weight: 107 kg

Total power: 9.5 kW

Electrical, standard: 380 to 415 V, 3 phase + N + PE, 50 Hz, 15.5 A, 16 A breaker, 5G x 2.5 mm2 cable

Electrical, option A: 220 to 240 V, 3 phase + PE, 50 Hz, 21 A, 25 A breaker, 4G x 2.5 mm2 cable

Plug: Not included

Water inlet: 3/4 inch female NPT, 1.5 to 6 bar line pressure (2 bar recommended)

Connectivity: Integrated Wi-Fi, HACCP data download, built-in microphone for voice control

Cooking functions: HYPER.Speed combines microwave, steam and convection to shorten cooking time; STEAM.Maxi makes saturated steam; DRY.Maxi removes moisture quickly; AIR.Maxi uses reversing fans; MULTI.Time runs up to 10 cooking processes at once and MULTI.Speed up to 4 speed processes; CHEFUNOX and SPEEDUNOX set parameters from built-in libraries; ADAPTIVE.Cooking and SMART.Preheating keep results repeatable.

Inlet water limits from the datasheet: free chlorine up to 0.5 ppm, chloramine up to 0.1 ppm, pH 7 to 8.5, conductivity up to 1500 uS/cm, total hardness up to 30 dH (534 ppm), chlorides up to 250 ppm. The datasheet states that water outside these limits voids the warranty.

Optional accessories: DET&Rinse ULTRA cleaning agents, a stand, Cooking Essentials trays and Speed Essentials trays and spatulas. Premium digital services listed include voice control, COOKING.Concierge, DDC Enterprise access and a LONG.Life 5 warranty extension; confirm availability in India.

Suitable for: hotels, restaurants and cafes that want combi cooking and fast sandwich or precooked dish service from a single oven.
